Simplifier Manager Configuration Software

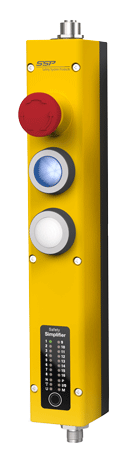

Simplifier Manager is the free software for the Safety Simplifier System

Program the safety functions in an easy and uncomplicated way using the Simplifier Manager configuration Software. The functional modules for emergency stops, safety switches, light curtains, two-hand controls, mode selector Switches and many others are available as standard.

saves time and resources
drag & drop function
user-friendly, intuitive interface
predefined functional modules for easy and fast programming
wireless connection using the SRM stick or optionally via USB connection
online mode for live diagnosis

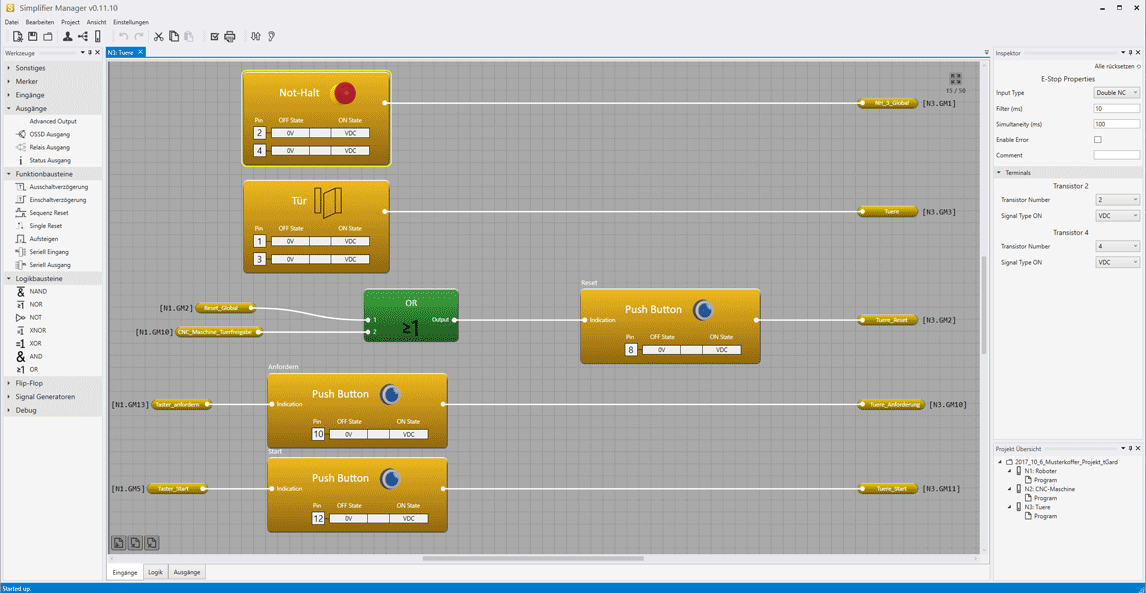

Configuration of the functional modules

The properties of the individual functional modules can be configured with the inspector window. Examples of parameters:

one- or two-channel Monitoring
filter times
simultaneous times
fault output activation
application of clock signals for cross-circuit detection

Distribution of safety functions

In order to gain more clarity, the safety functions can be arranged on different pages using memories. This simplifies the validation and programming of your application.

Programming and upload of the application software

Program your application software with the Simplifier Manager. Install the application software for all participants using the SRM stick (Simplifier Radio Monitor Stick). A cable connection to the Safety Simplifier is not necessary. In the case that you don't have the SRM stick at hand, you can also use all functions via standard micro USB cable. All safety-related data like serial numbers of the devices, check sums, network ID, wireless channel and quality are displayed.

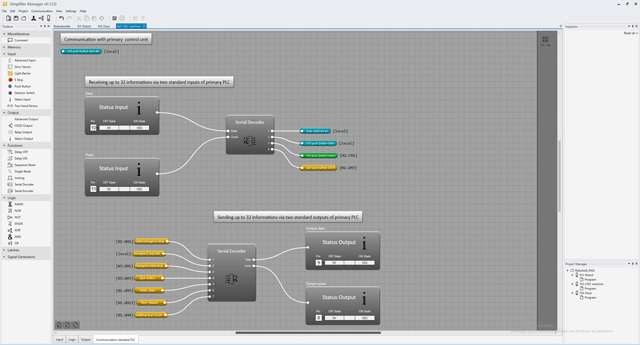

Simplifier Manager Software Interface

Validation and Examination of the Applicationsoftware

The Safety Simpliﬁer Manager supports you during creation of the validation documentation according to EN ISO 13849-2. The check report contains all safety-related parameters like PFHD values, Diagnostic Coverage (DC) and Performance Level (PL) according to EN ISO 13849-1 for the Safety Simpliﬁer System.

Project report

Automatically generate the project report using the Simpliﬁer Manager. All safety-related parameter are clearly listed and presented.
