Your advantages

Robust housing in IP65 and IP67
Modular construction
Ergonomic design
Combination of enabling button and operating unit
LED diagnosis
Universal connection with fixed cable

Downloads

ZEUS 01-11 11 00
Enabling/operating unit

Zeus Zustimmtaster

Zeus Zustimmtaster mit Handerkennung

ZEUS Zustimmtaster

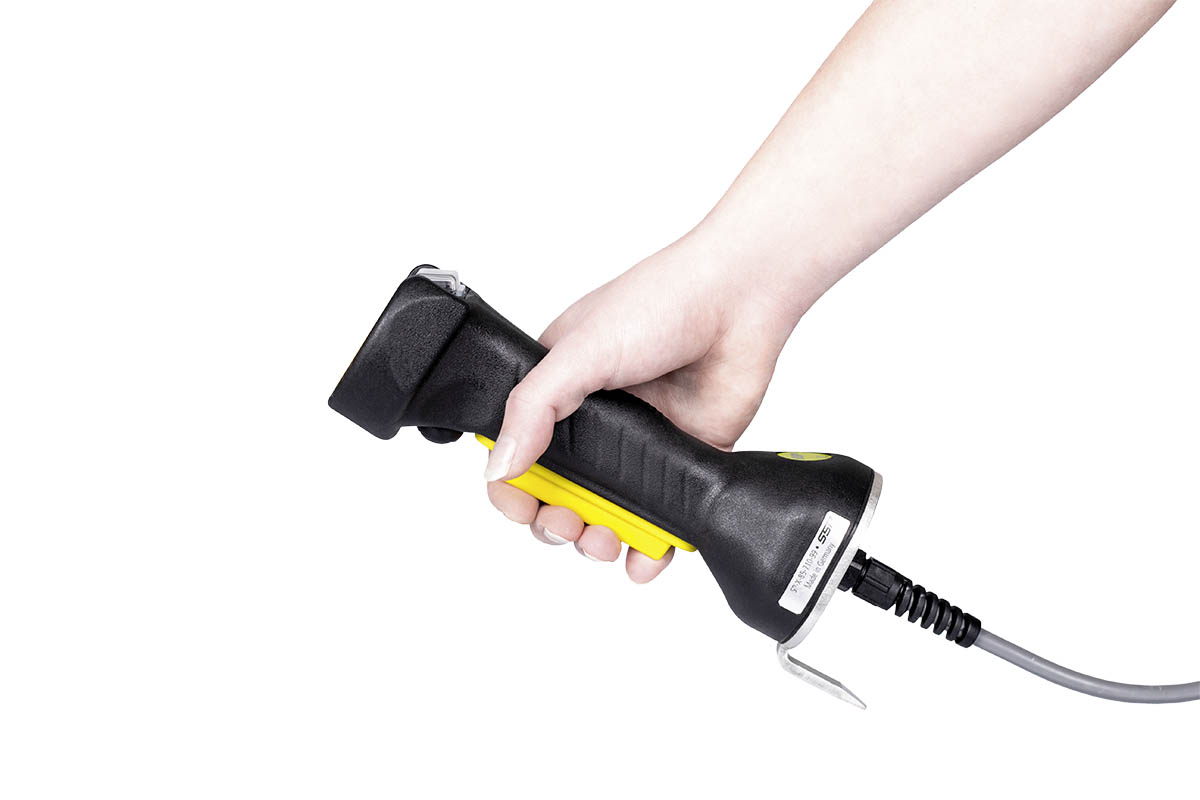

ZEUS guarantees fatigue free activity, thanks to an ergonomical design and low weight. It is suitable for left and right handed persons and easily operated with gloves.
With it's way to function the 3-Step-Enabling Switch ZEUS creates ideal safety conditions in your enabling operation.

General data

Item number

SP-X-85-902-43

Functional type

Enabling and operating unit

Standards

EMV: DIN EN 55011:2009 + A1:2010, DIN EN 61000-4-3:2006 + A1:2008 + A2:2010, DIN EN 61000-4-6:2009

Safety data

Approvals

TÜV, CE

Environmental conditions

Max. storage temperature

-40... +80 °C

Max. operating temperature

-5 ... +60 °C

Clearance and creepage distances according to IEC/EN 606641

Overvoltage category: 3 // Contamination level: III

Electrical data

Supply voltage

DC ± 5% 24 V

B10d-value

Enabling button: 100.000

Mechanical data

Enabling button material

Silicon

Base plate

With mounting bracket: only for use with the ZEUS H (SP-X-85-800-00) // screw connections: M20 internal thread

Connection material

PUR according to UL, black

Length

71 mm

Width

69 mm

Height

186 mm

Housing material

PA6.6 30% GF, colour: black

Material for base plate

V2A

Mechanical service life

100.000 switching cycles

Screw torque

0,8 Nm

Electrical drawings

Pin assignment 1

Equipment

MOSAIC M1

S2 series

SP UH-K

X2 series

ZEUS H

ZEUS ZHS
