XCONN P6-M12-10m

Downloads

XCONN P6-M12-10m
Passive distributor

The XCONN passive distributor enables the connection of up to 6 SAFIX safety sensors – optionally in combination with HOLDX process locks from the S1 and L1 series – and thus minimises the wiring work required.

The LEDs on the distributor box indicate to the user whether the door is open and whether the magnet has locked. The safety circuit is switched in series via the XCONN passive distributor, while information signals are available for individual analysis. Connection is via a 19-pole M23 connector or a fixed cable (5 m or 10 m).



Betreff: XCONN P6-M12-10m Passive distributor

General data

Type designation
XCONN P6-M12-10m
Item number
SP-X-71-000-04
Functional type
Passive distributor

Environmental conditions

Max. storage temperature
-25...+ 70 °C
Max. operating temperature
-20...+ 65 °C

Electrical data

Design / Connections
M12 female connector
Contact material
Brass with gold-plated contacts
Max. voltage (VDC)
2,0 A
Resistance value
≤ 5 Ohm

Mechanical data

Width
54 mm
Length
127 mm
Height
29 mm
Housing material
PBT

Electrical drawings

Connection example 1
Connection example 1
Connection example 2
Connection example 2

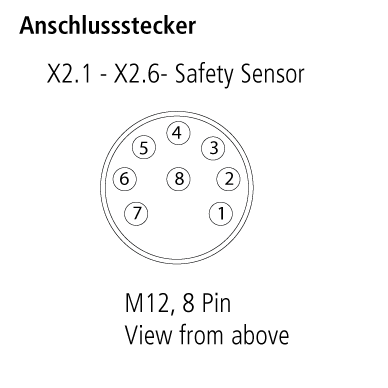

Pin assignment 1
Pin assignment 1
Pin assignment 2
Pin assignment 2

Drawings

Dimensions
Dimensions

Equipment

M12-M12-C8103-G
M12-M12-C813-G
M12-M12-C853-G
M8-M12-C80153-VG
M8-M12-C8053-G
M8-M12-C8103-G
M8-M12-C823-G
M8-M12-C853-G
MOSAIC M1
S2 series
T2 series
XCONN A1
XCONN Y1-M12
