THM-SMDU-NTQ

Your advantages

  •     Robust but slim metal housing
  •     Protection class IP65
  •     PLe according to EN ISO 13849-1
  •     Modular and individually configurable
  •     M12 8-pin male connector
  •     Solenoid interlock for personal protection

THM-SMDU-NTQ+T04829X001
Safety switch with RFID-locking function

tGard offers you innovative solutions for combining safety functions and operating elements at access points to dangerous machines and plants. The compact and extremely robust metal housing provides you with the required stability and durability.

tGard can be adapted to your requirements due to its modular design. Depending on the safety requirements at your plant, you can select and combine various different safety functions such as position monitoring, locking or key transfer systems. tGard combines safety and operation. Alongside the safety functions, you can also select a diverse range of operating elements. Whether indicator lights for status reports, call and release buttons, emergency stop buttons or selection switches, you decide what you require.




Betreff: THM-SMDU-NTQ+T04829X001 Safety switch with RFID-locking function


General data

Functional type
Safety switch with rfid guard locking
Item number
ITM-00568918
- Colour
dark gray
Type designation
THM-SMDU-NTQ+T04829X001
Service life TM (EN ISO 13849-1)
20 Years
Utilisation category for signal contacts
DC13: Le=0.5 A, Ue=24 V DC
Emergency release
no

Safety data

Category (EN ISO 13849-1:2015)
3
SIL (acc. IEC 62061)
2
Approvals
EN13849-1:2008 EN13849-2:2012 EN62061:2005 EN14119:2013

Environmental conditions

Max. storage temperature
0 ... +60 °C
Max. operating temperature
0 ... +40 °C

Electrical data

Connection type
M12 8-pin male connector
Safety locking for protection of personnel
yes
- Solenoid control
24V DC
Auxiliary mechanical release
yes
Utilisation category for safety contacts
DC13: Le=0,5 A, Ue=24 V DC AC15: Le=1 A, Ue=24 V AC

Mechanical data

Mechanical service life
1.000.000 switching cycles
Actuating force
5 to 10 NM
Width
40 mm
Locking force Fmax
2500 N
Fixing force
5 up to 10 N
UL and CSA approval
yes

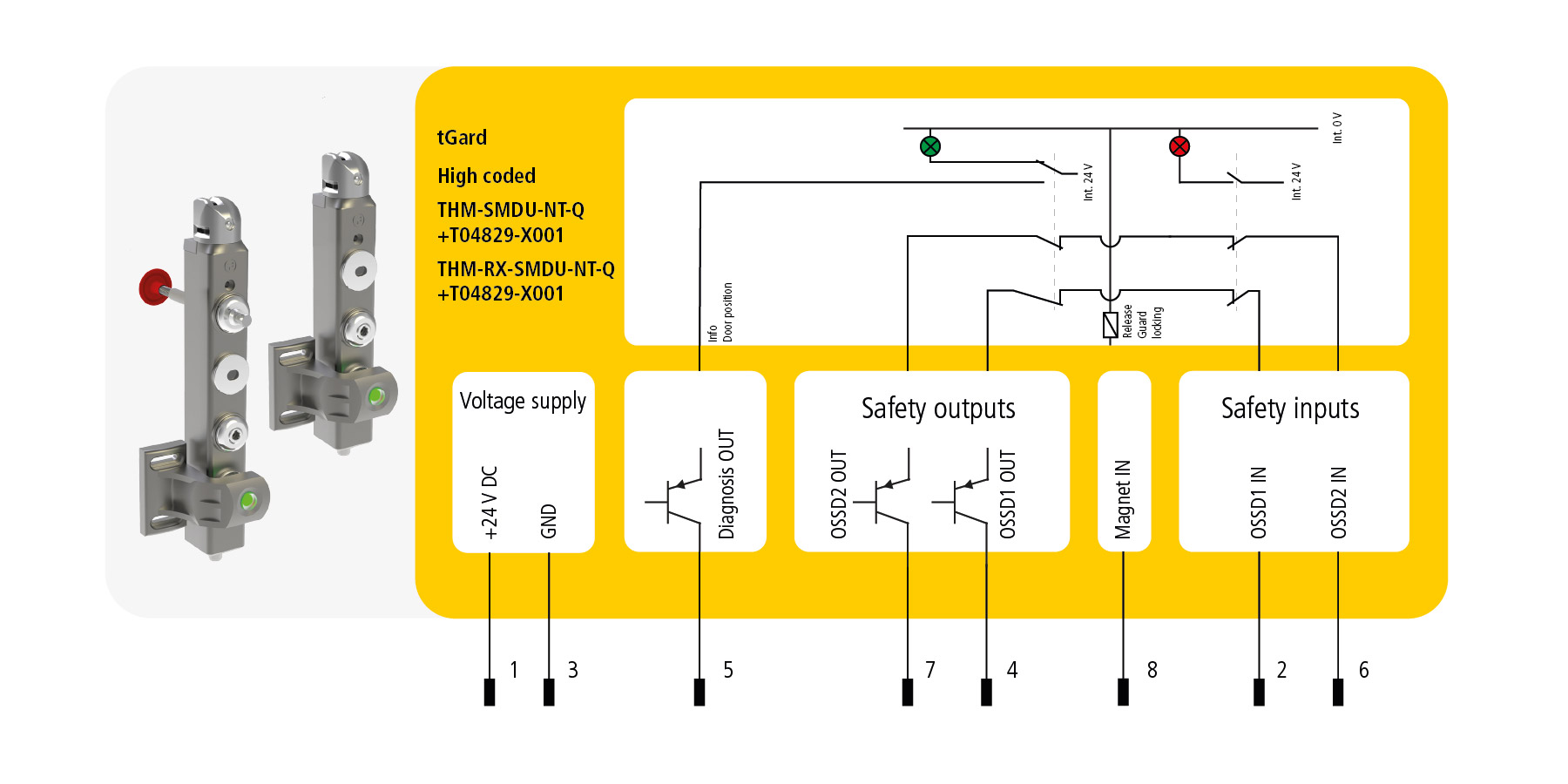

Electrical drawings

Connection drawing
Connection drawing

Drawings

Dimensions
Dimensions

Equipment

TAF
TAH
TAS
TEH
