E2-I1-I1-K10-Q1A0-Q2A2-Q3V0-Q4A1

Your advantages

  • One wire for safety communication and power supply
  • Prewired standard version
  • Decentralisized safety solution

Downloads

S14LDRBCB-H0A-E2-I1-I1-K10-Q1A0-Q2A2-Q3V0-Q4A1-W200
Simplifier Gatebox CAN | for EOS4

Betreff: S14LDRBCB-H0A-E2-I1-I1-K10-Q1A0-Q2A2-Q3V0-Q4A1-W200 Simplifier Gatebox CAN | for EOS4

General data

Type designation
S14LDRBCB-H0A-E2-I1-I1-K10-Q1A0-Q2A2-Q3V0-Q4A1-W200
Item number
SP-X-91-001-01
Body Material
PC + ABS
Functional type
Safe IO box / safety PLC, internal antenna, Secure CAN-BUS
Button position 1
Type designation
E2
Function type
Emergency stop button (illuminated)
Button position 2
Type designation
I1
Function type
Illuminated button (red, yellow, green, blue, white)
Button position 3
Type designation
I1
Function type
Illuminated button (red, yellow, green, blue, white)
Button position 4
Type designation
K10
Function type
Key switch, 2 positions, latching (1x NO contact + 1x NC contact)
Connection
- Position 1

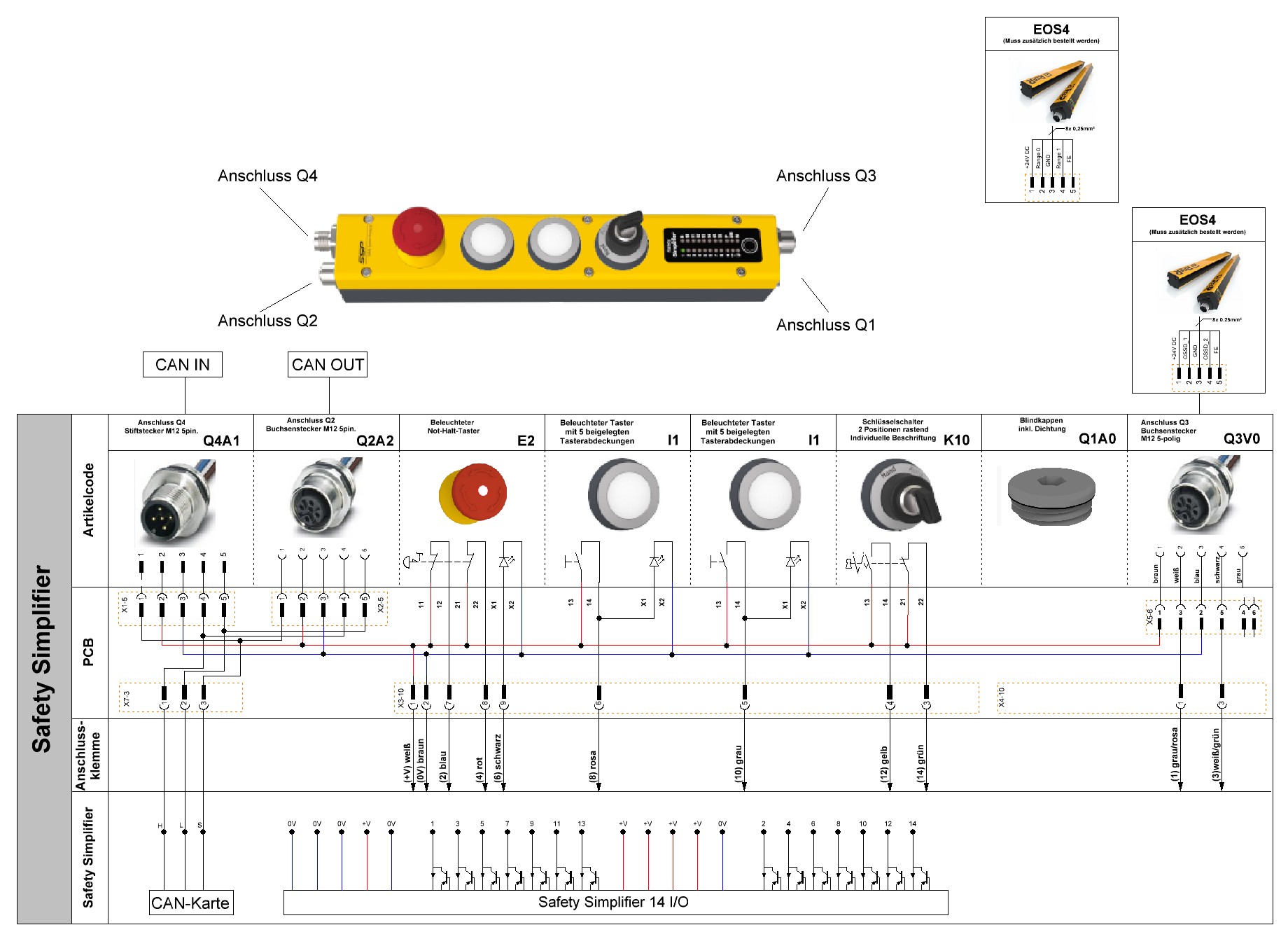

Q1A0: Bottom left connection with cover
- Position 2
Q2A2: M12 5-pin socket (CAN OUT + supply) top left
- Position 3
Q3V0: M12 5-pin socket (receiver) bottom right
- Position 4
Q4A1: M12 5-pin connector (CAN IN + supply) top right
