E2-I1-I1-I1-Q1A0-Q2A2-Q3R0-Q4A1

Your advantages

  • One wire for safety communication and power supply
  • Prewired standard version
  • Decentralisized safety solution

Downloads

S14LDRBCB-H0A-E2-I1-I1-I1-Q1A0-Q2A2-Q3R0-Q4A1-W192
Simplifier Gatebox CAN | for tGard

Betreff: S14LDRBCB-H0A-E2-I1-I1-I1-Q1A0-Q2A2-Q3R0-Q4A1-W192 Simplifier Gatebox CAN | for tGard

General data

Type designation
S14LDRBCB-H0A-E2-I1-I1-I1-Q1A0-Q2A2-Q3R0-Q4A1-W192
Item number
SP-X-91-000-93
Body Material
PC + ABS
Functional type
Safe IO box / safety PLC, internal antenna, Secure CAN-BUS
Button position 1
Type designation
E2
Function type
Emergency stop button (illuminated)
Button position 2
Type designation
I1
Function type
Illuminated button (red, yellow, green, blue, white)
Button position 3
Type designation
I1
Function type
Illuminated button (red, yellow, green, blue, white)
Button position 4
Type designation
I1
Function type
Illuminated button (red, yellow, green, blue, white)

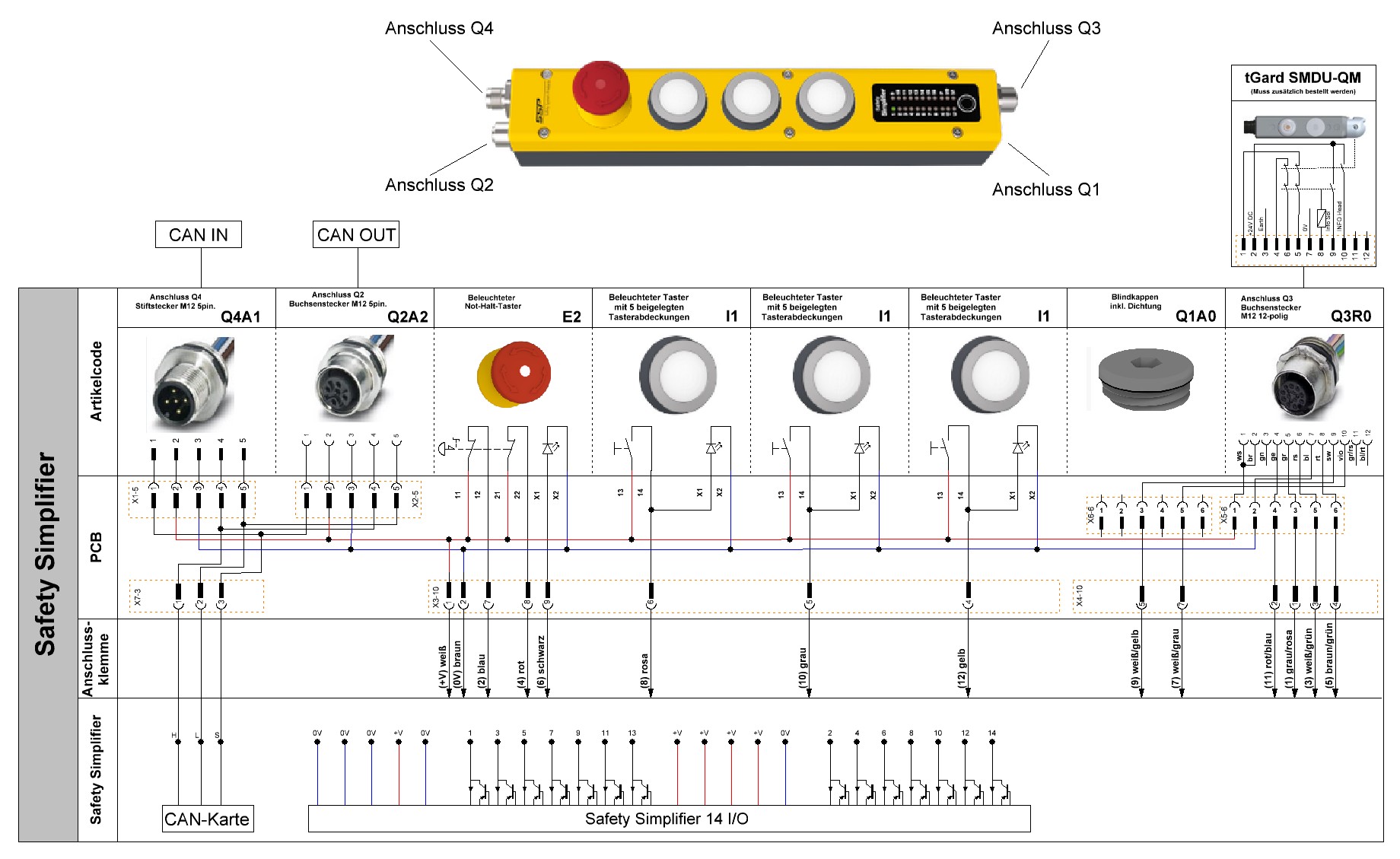

Connection
- Position 1
Q1A0: connection bottom left with cover
- Position 2
Q2A2: M12 5-pin socket (CAN OUT + supply) top left
- Position 3
Q3R0: M12 12-pin socket (sensor slot) bottom right
- Position 4
Q4A1: M12 5-pin connector (CAN IN + supply) top right
