S14LDRB-H09-E2-I1-I1-Q1A0-Q2A0-Q3A0-Q4C0-W101
Simplifier Gatebox | without additional sensoric

Betreff: S14LDRB-H09-E2-I1-I1-Q1A0-Q2A0-Q3A0-Q4C0-W101 Simplifier Gatebox | without additional sensoric

General data

Type designation
S14LDRB-H09-E2-I1-I1-Q1A0-Q2A0-Q3A0-Q4C0-W101
Item number
SP-X-91-000-02
Body Material
PC + ABS
Functional type
Safe IO box / safety PLC, internal antenna
Button position 1
Type designation
E2
Function type
Emergency stop button (illuminated)
Button position 2
Type designation
I1
Function type
Illuminated button (red, yellow, green, blue, white)
Button position 3
Type designation
I1
Function type
Illuminated button (red, yellow, green, blue, white)

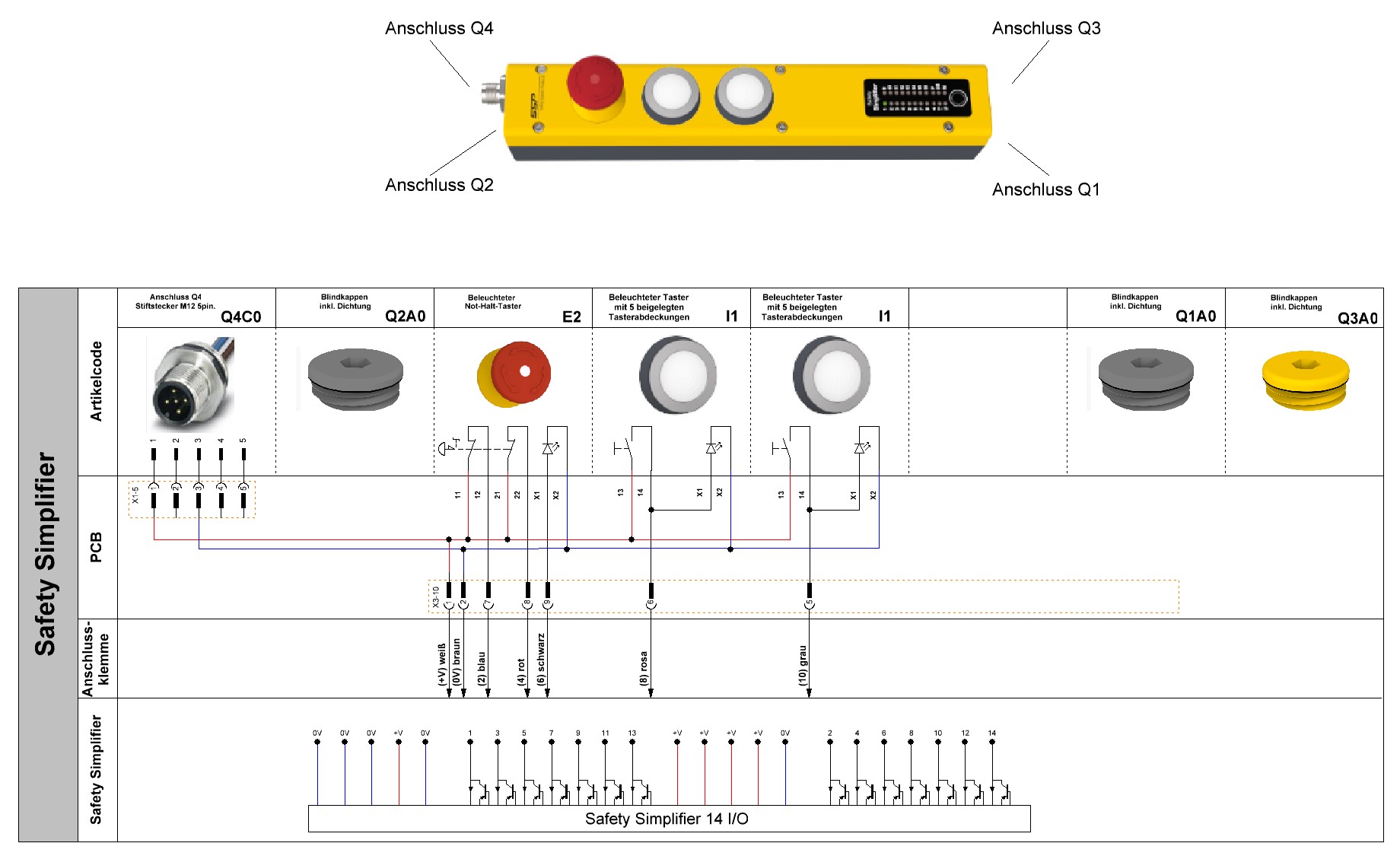

Connection
- Position 1
Q1A0: connection bottom left with cover
- Position 2
Q2A0: connection top left with cover
- Position 3
Q3A0: connection bottom right with cover
- Position 4
Q4C0: male connector M12 5-pin top right

Safety data

Approvals
CE, TÜV
CPU
- EN ISO 13849-1: 2008
Category 4
- IEC 61508-2
SIL CL 3
- EN 62061 PFHD [1/h]
approved
- EN ISO 13849-1: 2008 TM [Year]
20
1-channel input
- EN ISO 13849-1: 2008
Category 2
- IEC 61508-2
SIL CL 2
- EN 62061 PFHD [1/h]
approved
- EN ISO 13849-1: 2008 TM [Year]
20
2-channel input
- EN ISO 13849-1: 2008
Category 4
- IEC 61508-2
SIL CL 3
- EN 62061 PFHD [1/h]
approved
- EN ISO 13849-1: 2008 TM [Year]
20
1-channel OSSD output
- EN ISO 13849-1: 2008
Category 2
- IEC 61508-2
SIL CL 2
- EN 62061 PFHD [1/h]
approved
- EN ISO 13849-1: 2008 TM [Year]
20
2- channel OSSD Output
- EN ISO 13849-1: 2008
Category 4
- IEC 61508-2
SIL CL 3
- EN 62061 PFHD [1/h]
approved
- EN ISO 13849-1: 2008 TM [Year]
20
2- channel relais output
- EN ISO 13849-1: 2008
Category 4
- EN 62061 SIL CIL
SIL CL 3
- EN 62061 PFHD [1/h]
approved
- EN ISO 13849-1: 2008 TM [Year]
20

Environmental conditions

Max. storage temperature
-20°C ... +65 °C
Max. operating temperature
-20°C ... +65 °C
Protection class
IP65

Electrical data

Technical data wireless safety
- max. amount of safe wireless channels
16
Channels
- Channel 1
2405 MHz MHz
- Channel 2
2410 MHz
- Channel 3
2415 MHz
- Channel 4
2420 MHz
- Channel 5
2425 MHz
- Channel 6
2430 MHz
- Channel 7
2435 MHz
- Channel 8
2440 MHz
- Channel 9
2445 MHz
- Channel 11
2450 MHz
- Channel 10
2455 MHz
- Channel 12
2460 MHz
- Channel 13
2465 MHz
- Channel 14
2470 MHz
- Channel 15
2475 MHz
- Channel 16
2480 MHz
- amount of clamps
32
General data
Supply voltage
10 - 30 V
Current consumption
110 mA with LED display
Memory card
Installation of a memory card MEM SP-N-88-001-93 is possible
Type terminal connection
clamp terminal
Conductor cross section
Programming connection
Micro USB Wireless-Interface
- single wire
0,08 … 0,5 mm²
- fine wire
0,08 … 0,5 mm²
- fine wired (wire sleeve with plastic collar)
0,08 … 0,5 mm²
- fine wired (wire sleeve without plastic collar)
0,25 mm²
stripping length
5-6 mm
configurable In-/ Outputs
14 semiconductor In-/ Outputs with help of software configurable
yes
Amount of safe inputs
max. 14
Amount of safe semi-conductors OSSD outputs
max. 14
Amount of semi-conductors auxilliary outputs
max. 14
Amount of semi-conductors clock outputs
max. 8
Technical data inputs
Input voltage
HIGH 75% from UB (adjustable with Software) LOW 25% from UB (adjustable with software)
Input current
HIGH 2,4 mA ... 3,8 mA LOW -2,5 mA ... 2,1 mA
Technical data safe OSSD outputs, auxilliary and test pulse outputs
Output type
PNP semiconductor
Output voltage
Operating voltage UB -0.5 V
Seperate output current
max. 600 mA (with UB 24 V)
Total output current
max. 2 A (with UB 24 V)
Short-circuit proof
yes
Button position 1
Type designation
E2
Function type
Emergency-Stop-Button
Switch type
2 Opener + LED
Bounce time NO
<10 ms
Bounce time NC
<10 ms
Break contact force opening
according to EN60947-5-1 Anh-K.
Illumination
LED
mechanical lifespan
50.000 switching cycles
electrical lifespan
50.000 switching cycles
Button position 2
Type designation
I1
Function type
Illuminated Button
Switch type
1 closing device + LED
Bounce time NO
<10 ms
Bounce time NC
<10 ms
Break contact force opening
according to EN60947-5-1 Anh-K
Illumination
LED
mechanical lifespan
30.000 switching cycles
electrical lifespan
30.000 switching cycles
Button position 3
Type designation
I1
Function type
Illuminated Button
Switch type
1 closing device + LED
Bounce time NO
<10
Bounce time NC
<10
Break contact force opening
according to EN60947-5-1 Anh-K.
Illumination
LED
mechanical lifespan
30.000 switching cycles
electrical lifespan
30.000 switching cycles

Mechanical data

Installation opening of buttons
22,5 mm
Type of housing
H09
Dimensions
Height
42 mm
Length
253 mm
Width
44 mm

Drawings

Assembly
Assembly
Dimensions
Dimensions

Equipment

Button cap set for illuminated buttons
Inscription label set ZB1
Inscription label set ZB2
Inscription label set ZB3
Inscription label set ZB4
Installation wrench
Liftingtool for button and light caps
Mounting plate big
Mountingplate small
Screw with seal
Simplifier EXTA 1 m
Simplifier EXTA 10 m
Simplifier EXTA 2 m
Simplifier EXTA 5 m
Simplifier EXTA 8 m
Simplifier ZHMS
Simplifier ZHS
