E2-I1-Q1M0-Q2A0-Q3M0-Q4C0

Your advantages

  • Radio communication
  • Prewired standard version
  • Decentralisized safety solution

Downloads

S14LDRB-H08-E2-I1-Q1M0-Q2A0-Q3M0-Q4C0-W154
Simplifier Gatebox | for 2 x SAFIX

Betreff: S14LDRB-H08-E2-I1-Q1M0-Q2A0-Q3M0-Q4C0-W154 Simplifier Gatebox | for 2 x SAFIX

General data

Type designation
S14LDRB-H08-E2-I1-Q1M0-Q2A0-Q3M0-Q4C0-W154
Item number
SP-X-91-000-55
Body Material
PC + ABS
Functional type
Safe IO box / safety PLC, internal antenna
Button position 1
Type designation
E2
Function type
Emergency stop button (illuminated)
Button position 2
Type designation
I1
Function type
Illuminated button (red, yellow, green, blue, white)

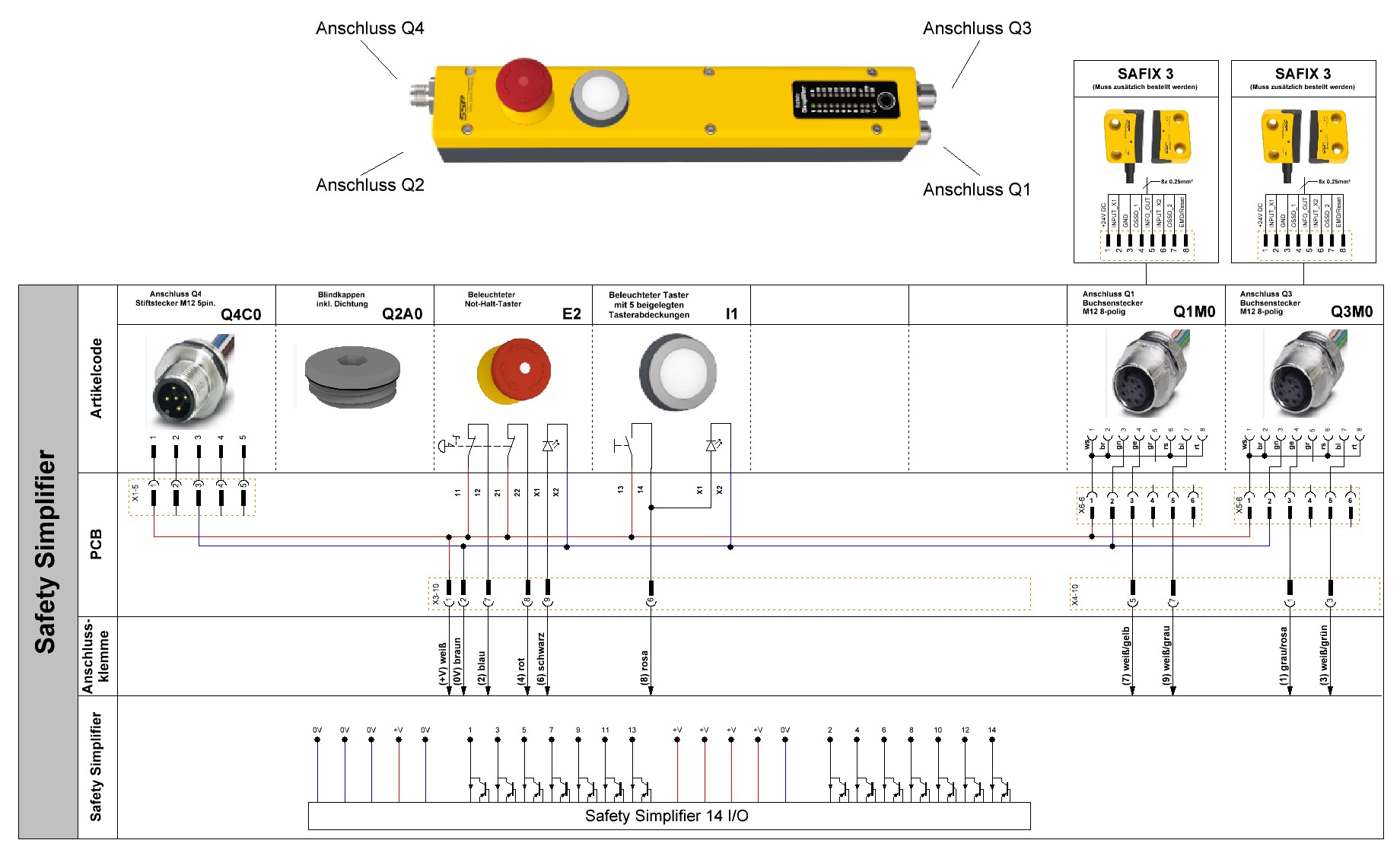

Connection
- Position 1
Q1M0: M12 8-pin socket (sensor slot) bottom left
- Position 2
Q2A0: connection top left with cover
- Position 3
Q3M0: M12 8-pin socket (sensor slot) bottom right
- Position 4
Q4C0: Stecker M12 5-polig (Versorgung) oben rechts
