SB-H05-EA-IA-IA-P1-P1-Q1A0-Q2A0-Q3E0-Q4A0-W10
Simplifier BOX 253



  • SB-H05: Simplifier Box
  • Lower housing: Color anthracite, no openin for connectors on the back
  • Upper housing: Color yellow, possible integration of three control points
  • EA: Emergency stop button, 2 x NC
  • IA: Illuminated button, 1x NO (5 x button caps enclosed)
  • IA: Illuminated button, 1x NO (5 x button caps enclosed)
  • P1: Taster, 1x NO (6 x Tasterkappen beigelegt)
  • P1: Taster, 1x NO (6 x Tasterkappen beigelegt)
  • Q1A0: Connector at the bottom left with cover
  • Q2A0: Connector on top left with cover
  • Q3E0: Bottom right male connector  M12 12-pin
  • Q4A0: Connector on top right with cover
  • W10: already prewired







Betreff: SB-H05-EA-IA-IA-P1-P1-Q1A0-Q2A0-Q3E0-Q4A0-W10 Simplifier BOX 253

General data

Type designation
SB-H05-EA-IA-IA-P1-P1-Q1A0-Q2A0-Q3E0-Q4A0-W10
Type designation
EA
Functional type
Operating unit
Type designation
IA
Button position 1
Button position 2
Item number
1028673
Item number (old)
SP-X-87-000-10
Function type
Emergency- Stop- Button
Function type
Illuminated Button
Button position 3
Type designation
IA
Function type
Illuminated Button
Button position 4
Type designation
P1
Connection
- Position 1
Q1A0- Connection bottom left with cover
- Position 2
Q2A0 - Connection top left with cover
- Position 3
Q3E0- Connection bottom right with M12 male connector 12-pin
- Position 4
Q4A0- Anschluss top right with cover

Safety data

Approvals
CE

Environmental conditions

Max. storage temperature
‐20 ... + 65 °C
Max. operating temperature
‐20 ... + 65 °C

Electrical data

Utilisation category
DC13
Connection type
Spring-loaded terminals

Mechanical data

Housing type
Yellow housing with the possibility of fitting “5” control points
Width
42 mm
Length
253 mm
Dimensions
Height
44 mm

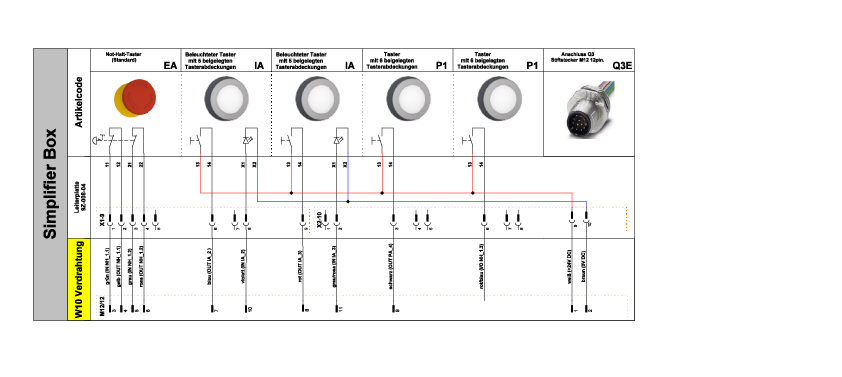

Electrical drawings

Connection example 1
Connection example 1

Equipment

Button cap set for illuminated buttons
Button cap sets for unlit buttons
Inscription label set ZB1
Inscription label set ZB2
Inscription label set ZB3
Installation wrench
Liftingtool for button and light caps
Mounting plate big
Mountingplate small
Screw with seal
Signal light caps set for signal lights
Simplifier ZHMS
Simplifier ZHS
