Your advantages

  • PLe according to EN ISO 13849-1
  • IP 67 and ECOLAB
  • Series connection of up to 30 sensors without reduction in safety
  • No special analysis system required
  • LED diagnosis
  • Single information signal for diagnosis
  • Highly coded according to EN ISO 14119 (version I3 and W3)
  • Small compact design
  • Fastest sensor available (risk time)

Downloads

SAFIX S3-X-P
RFID Safety Sensor, low coded, EDM, man. Reset, Pigtail

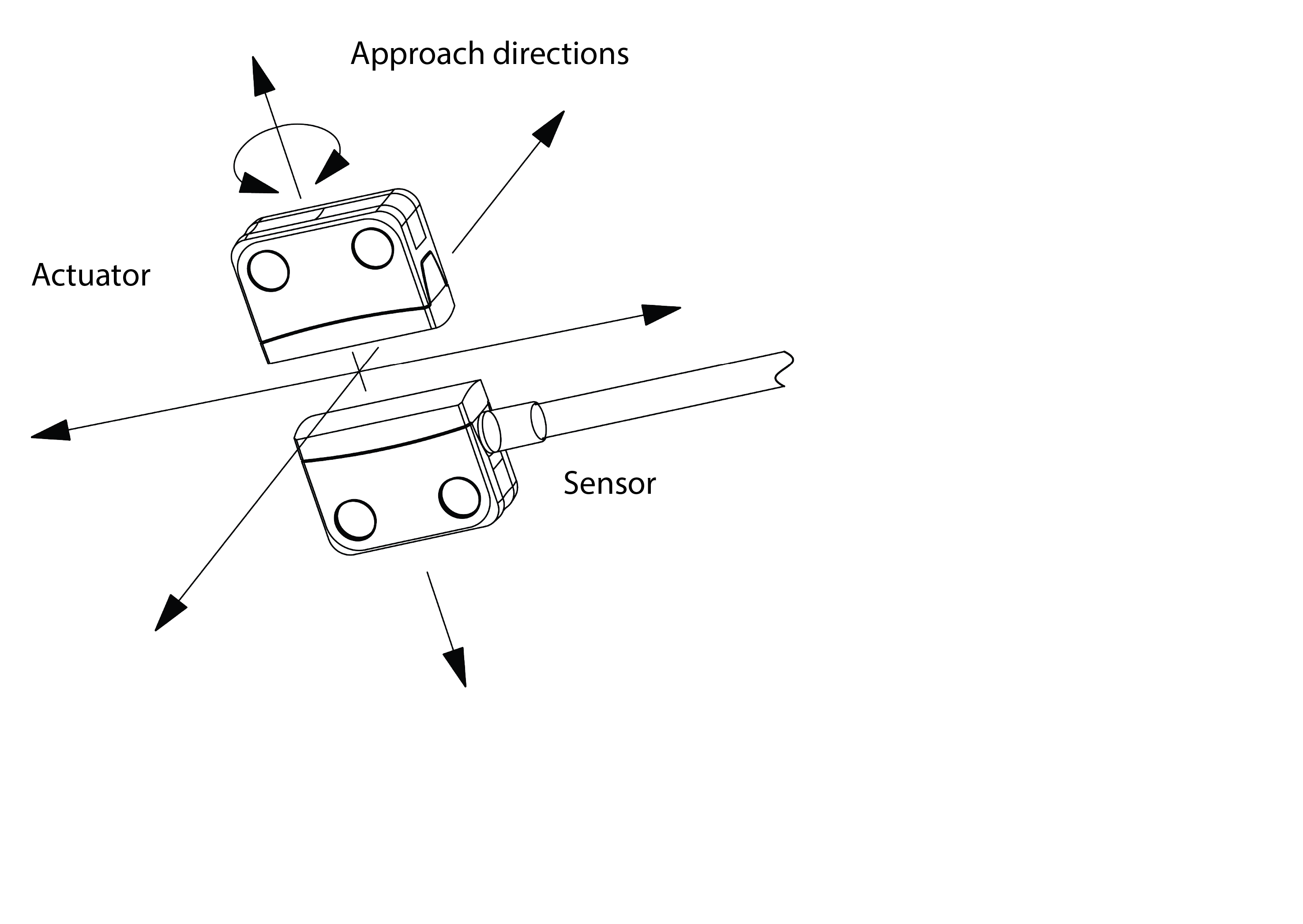

The new SAFIX 3 RFID safety sensor impresses due to its compact design and a hole distance of 22 mm. It can be actuated from the front and both sides and is available in 3 different versions with a choice of low level or high level coding according to EN ISO 14119. The sensor has protection class IP69K, holds an ECOLAB approval and can either be purchased with an M12, 8-pin pigtail cable or a fixed cable length of 5 or 10 metres.

Thanks to its OSSD output signals, the sensor can be connected to all standard control and safety relays. A total of up to 30 sensors can be switched in series. An information signal and a three colour LED display on the sensor are provided for diagnosis purposes.



Betreff: SAFIX S3-X-P RFID Safety Sensor, low coded, EDM, man. Reset, Pigtail

General data

Type designation
SAFIX S3-X-P
Functional type
RFID safety sensors
Item number
SP-E-76-000-02
Service life TM (EN ISO 13849-1)
20 Years
Coding levels
Standard

Safety data

Performance Level (EN ISO 13849)
PLe
Category (EN ISO 13849-1:2015)
cat. 4
SIL (acc. IEC 62061)
SIL3, SILCL3
PFHd (EN ISO 13849)
2,24 x 10⁻⁹
Approvals
TÜV_SÜD, CE

Environmental conditions

Max. storage temperature
-25 ... + 70 °C
Max. operating temperature
-25 ... + 70 °C
Contamination level
2

Electrical data

Overvoltage category
II
Rated impulse withstand voltage Uimp
1000 V kV
Electrical service life (nominal load)
20 Years
Design / Connections
Pigtail 19,5cm cable M12-8 pin plug
Contact type
OSSD
Supply voltage
24 V DC +/- 10% V
Rated insulation voltage Ui
50 V V
Power consumption in ambient conditions
23,75 W
No-load current I0
(not activated) 10 mA / (activated) 30 mA
Max. voltage (VDC)
1 A
Switching frequency
3
LED lighting
3 colors
Utilisation category
D-12/DC-13
Risk time
75 ms
Series connection
30
pin assignment with SSP accessories cable
WH
UB
BN
safety input 1
GN
GND
YE
safety output 1
GY
diagnostic output
PK
safety input 2
BU
safety output 2
RD
EDM/ Reset
Pin assignment according DIN 47100
BN
UB
WH
safety input 1
BU
GND
BK
safety output 1
GY
diagnostic output
PK
safety input 2
VT
safety output 2
OG
EDM/ Start- Input

Mechanical data

Dimensions
Length
13 mm
Width
36 mm
Height
26 mm
Torque (mounting nut)
0,7 Nm
Mounting
Screw connection with M4 screws (sunk)
Housing material
PBT
Shock resistance
30 g/11 ms
Vibration resistance
Amplitude 1 mm, 10 … 55 Hz
Switching distance Sn
12 mm
Assured switching distance ON S(ao)
8 mm
Assured switching distance OFF S(ar)
18 mm
Hysteresis
2 mm
Repeat accuracy R
< 0,5 mm

LED diagnostics

Advanced LED diagnosis
Advanced LED diagnosis

Electrical drawings

Connection drawing
Connection drawing
Connection example 1
Connection example 1
Connection example 2
Connection example 2
Connection example 3
Connection example 3
Connection example 4
Connection example 4

Drawings

Assembly
Assembly

Equipment

C8D10
C8D15
C8D25
C8D40
C8D5
M12-M12-C8103-G
M12-M12-C813-G
M12-M12-C853-G
MOSAIC M1
S14LDRB-H08-E2-I1-Q1A0-Q2A0-Q3C0-Q4I0-W38
S14LDRB-H09-E2-I1-I1-Q1A0-Q2A0-Q3C0-Q4I0-W39
S14LDRB-H0A-E2-I1-I1-I1-Q1A0-Q2A0-Q3C0-Q4I0-W40
S14LDRB-H0A-E2-I1-I1-K4-Q1A0-Q2A0-Q3C0-Q4I0-W41
S2 series
SAFIX T5
SAFIX T6
SAFIX Z B5
T2 series
X2 series
XCONN P6-M12-10m
XCONN P6-M12-5m
XCONN P6-M12-M23
XCONN Y2-M12
