S14LDRB-H0A-E2-I1-I1-I1-Q1A0-Q2M0-Q3C0-Q4J0-W60
Safety Simplifier | for tGard and SAFIX 3

  • S14LDRB-H0A: Safety Simplifier with 14 safe I/Os
  • LED diagnostics for easy commissioning safe wireless communication
  • Lower housing section: anthracite colour, no cut-out for connection at the rear
  • Upper housing section: Yellow colour, option to install 4 control points
  • E2: Illuminated emergency stop button, 2 x NC
  • I1: Illuminated push-button , 1x NO (5 x push-button caps enclosed)
  • I1: Illuminated push-button , 1x NO (5 x push-button caps enclosed)
  • I1: Illuminated push-button , 1x NO (5 x push-button caps enclosed)
  • Q1A0: Bottom left connection with cover - Q2M0: Top left connection with 8-pin M12 female connector for Safix
  • Q3C0: Bottom right connection with 5-pin M12 male connector
  • Q4J0: Top right connection with 12-pin M12 female connector for tGard SMDU
  • W60: already pre-wired

Betreff: S14LDRB-H0A-E2-I1-I1-I1-Q1A0-Q2M0-Q3C0-Q4J0-W60 Safety Simplifier | for tGard and SAFIX 3

General data

Type designation
S14LDRB-H0A-E2-I1-I1-I1-Q1A0-Q2M0-Q3C0-Q4J0-W60
Item number
SP-X-89-100-35
Functional type
safety PLC with safe wireless interface, internal antenna
Button position 1
Type designation
E2
Function type
Illuminated Emergency-Stop-Button , 2 x NC
Button position 2
Type designation
I1
Function type
Illuminated button , 1x NO (5 x button caps included)
Button position 3
Type designation
I1
Function type
Illuminated button , 1x NO (5 x button caps included)
Button position 4
Type designation
I1
Function type
Illuminated button , 1x NO (5 x button caps included)
Colour
red, yellow, green, blue, white
Connection
- Position 1
Q1A0 - Connection bottom left with cover
- Position 2
Q2M0 - Top left connection with 8-pin M12 female connector for SAFIX 3
- Position 3
Q3C0- connection bottom right side including male plug M12-5 Pin
- Position 4
Q4S0 - connection top right side including socket plug M12-8 Pin for ATOM

Safety data

CPU
- EN ISO 13849-1: 2008
Category 4
- IEC 61508-2
SIL CL 3
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
1-channel input
- EN ISO 13849-1: 2008
Category 2
- IEC 61508-2
SIL CL 2
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
2-channel input
- EN ISO 13849-1: 2008
Category 4
- IEC 61508-2
SIL CL 3
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
1-channel OSSD output
- EN ISO 13849-1: 2008
Category 2
- IEC 61508-2
SIL CL 2
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
2- channel OSSD Output
- EN ISO 13849-1: 2008
Category 4
- IEC 61508-2
SIL CL 3
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
2- channel relais output
- EN ISO 13849-1: 2008
Category 4
- EN 62061 SIL CIL
SIL CL 3
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
Approvals
CE, TÜV

Environmental conditions

Max. storage temperature
-20°C... +65 °C
Max. operating temperature
-20°C... +65 °C

Electrical data

Technical data wireless safety
- max. amount of safe wireless channels
16
Channels
- Channel 1
2405 MHz
- Channel 2
2410 MHz
- Channel 3
2415 MHz
- Channel 4
2420 MHz
- Channel 5
2425 MHz
- Channel 6
2430 MHz
- Channel 7
2435 MHz
- Channel 8
2440 MHz
- Channel 9
2445 MHz
- Channel 11
2455 MHz
- Channel 10
2450 MHz
- Channel 12
2460 MHz
- Channel 13
2465 MHz
- Channel 14
2470 MHz
- Channel 15
2475 MHz
- Channel 16
2480 MHz
- amount of clamps
32
Supply voltage
10 - 30 V
Current consumption
110 mA with LED display
Conductor cross section
- single wire
0,08 … 0,5 mm²
- fine wire
0,08 … 0,5 mm²
- fine wired (wire sleeve without plastic collar)
0,25 mm²
stripping length
5-6 mm
configurable In-/ Outputs
14 semiconductor In-/ Outputs with help of software configurable
Amount of safe inputs
max. 14
Amount of safe semi-conductors OSSD outputs
max. 14
Amount of semi-conductors auxilliary outputs
max. 14
Amount of semi-conductors clock outputs
max. 8
Input current
HIGH 2,4 mA ... 3,8 mA LOW -2,5 mA ... 2,1 mA
Output type
PNP- Semiconductor
Output voltage
Betriebsspannung UB -0,5 V
Seperate output current
max. 600 mA (with UB 24 V)
Total output current
max. 2 A (with UB 24 V)
Button position 1
Type designation
E2
Function type
Emergency-stop-button
Switch type
2 Openers + LED
Bounce time NO
<10 ms ms
Bounce time NC
<10 ms
Break contact force opening
according to EN60947-5-1 Anh-K.
Illumination
LED
mechanical lifespan
50.000 switching cycles
electrical lifespan
50.000 switching cycles
Button position 2
Type designation
I1
Function type
Illuminated Button
Switch type
1 closing device + LED
Bounce time NO
< 10
Bounce time NC
< 10
Break contact force opening
according to EN60947-5-1 Anh-K.
Illumination
LED
mechanical lifespan
30.000 switching cycles
electrical lifespan
30.000 switching cycles
Button position 3
Type designation
I1
Function type
Illuminated Button
Colour
red, yellow, green, blue, white
Switch type
1 closing device + LED
Bounce time NO
< 10
Bounce time NC
< 10
Break contact force opening
according to EN60947-5-1 Anh-K.
Illumination
LED
mechanical lifespan
30.000 switching cycles
electrical lifespan
30.000 switching cycles
Button position 4
Type designation
I1
Function type
Illuminated Button
Colour
red, yellow, green, blue, white
Switch type
1 closing device + LED
Bounce time NO
< 10
Bounce time NC
< 10
Break contact force opening
according to EN60947-5-1 Anh-K.
Illumination
LED
mechanical lifespan
30.000 switching cycles
electrical lifespan
30.000 switching cycles
General data
Memory card
Installation of a memory card MEM SP-N-88-001-93 possible
Programming connection
Micro USB Wireless-Interface
Type terminal connection
clamp terminal
- fine wired (wire sleeve with plastic collar)
0,08 … 0,5 mm²
Input voltage
HIGH 75% of UB (customisable via software) LOW 25% of UB (customisable via software)
Technical data inputs
Technical data safe OSSD outputs, auxilliary and test pulse outputs
Short-circuit proof
Yes

Mechanical data

Installation opening of buttons
22,5 mm
Type of housing
H0A
Dimensions
Height
44 mm
Length
253 mm
Width
42 mm

Electrical drawings

Connection example 1
Connection example 1

Drawings

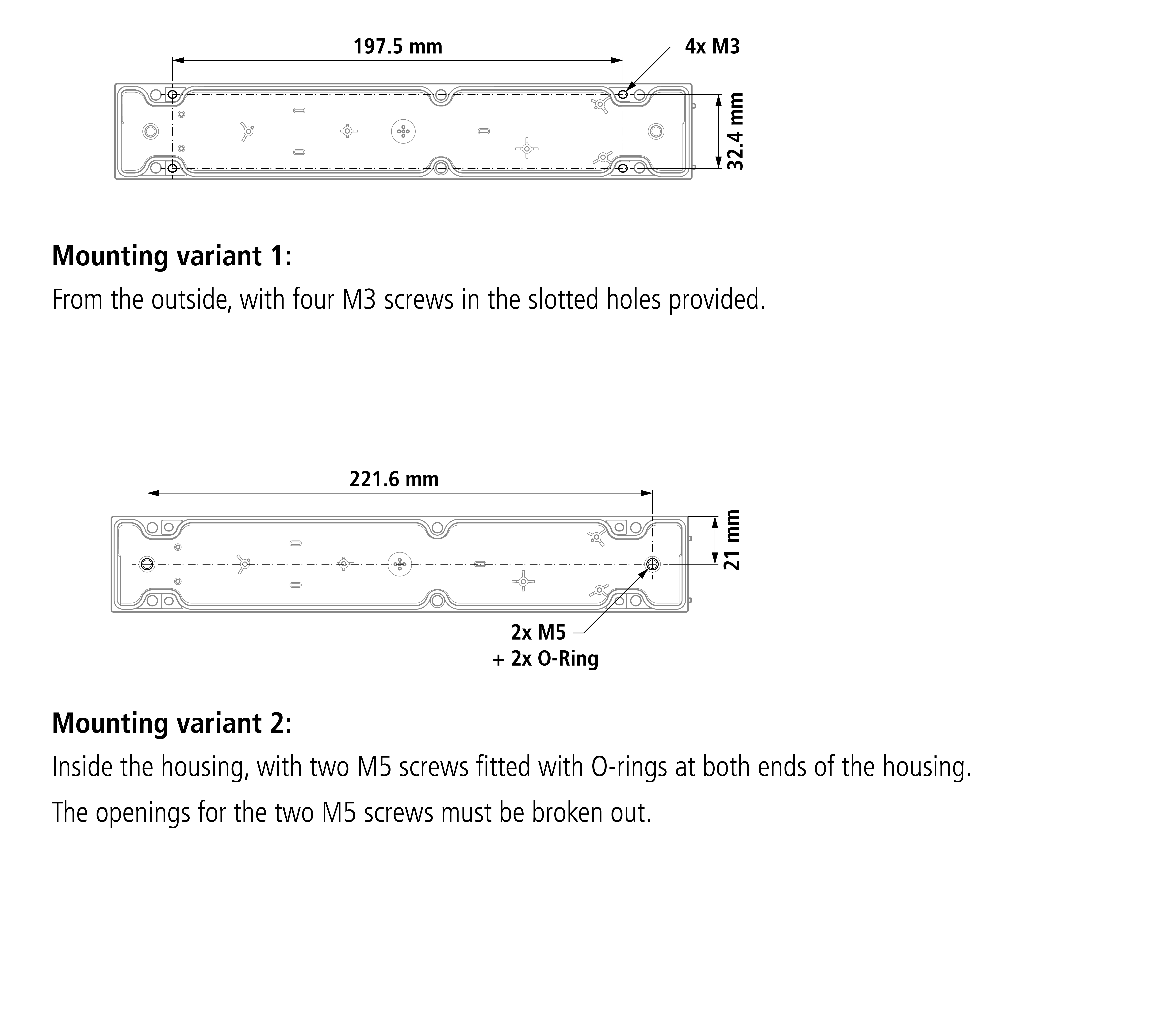

Assembly
Assembly
Assembly 2
Assembly 2
Dimensions
Dimensions

Equipment

Button cap set for illuminated buttons
Inscription label set ZB1
Inscription label set ZB2
Inscription label set ZB3
Inscription label set ZB4
Installation wrench
Liftingtool for button and light caps
Mounting plate big
Mountingplate small
Screw with seal
Simplifier EXTA 1 m
Simplifier EXTA 10 m
Simplifier EXTA 2 m
Simplifier EXTA 5 m
Simplifier EXTA 8 m
Simplifier Manager
Simplifier Monitor SRM
Simplifier ZHMS
Simplifier ZHS
