Illuminated Button Yellow I3
Illuminated 1 x NO

  • Illuminated
  • Pushbutton yellow
  • Safety contact 1x NO


Betreff: Illuminated Button Yellow I3 Illuminated 1 x NO

General data

Item number
SP-X-88-000-13
Type designation
Simplifier I3
Installation opening button
Ø 0.88 in / Ø 22.3 mm
Colour
Yellow

Safety data

Approvals
CE

Electrical data

Bounce time
<10
Bounce time NC
<10 ms
mechanical lifespan
1.000.000 switching cycles
Rated operating voltage Ue
24 V
Rated operating current Iₑ
0.25 A
Switch type
Turnkey (NO) 1, LED 1
Illumination
LED
Break contact force opening
according to EN60947-5-1 Anh-K.
electrical lifespan
1.000.000 switching cycles
<50 mOhm (AU)
Switching capacity
10 le
Continuous thermal current
5 A
Connecting typ
spring balancer clamp
Number of pins
6
Wire size
Single - wire
28…20 AWG / 0.08…0.5 mm²
Fine - wire
28…20 AWG / 0.08…0.5 mm²
Fine - wire ( wire end ferrule with plastic collar)
0.25 mm² / 24 AWG
Fine - wire ( wire end ferrule without plastic collar)
0.25 mm² / 24 AWG
Wire stripping
5…6 mm / 0.2…0.24 in

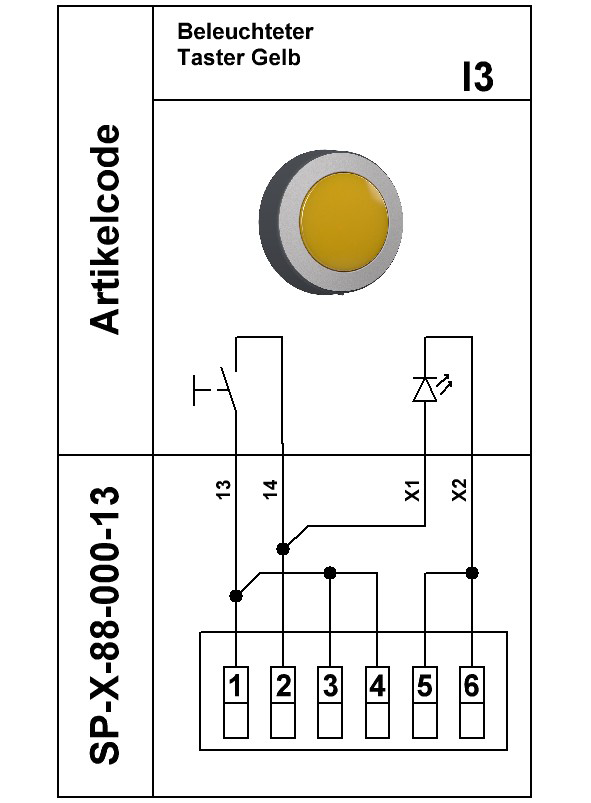

Electrical drawings

Connection example 1
Connection example 1

Equipment

Button cap set for illuminated buttons
Inscription label set ZB1
Inscription label set ZB2
Inscription label set ZB3
Inscription label set ZB4
Installation wrench
Liftingtool for button and light caps
Simplifier sealing kit
