CD15
M12-female connector, 5 pin, 15 m

M12 cable, 5 Pins, 5 x 0,34 mm², open end, 15 m

General data

Type designation

CD15

Wiring color K1

BR, WH,BL, BK, GY

EOS4 A receiver

✔

EOS transmitter

✔

SAFEGATE transmitter

✔

EDI B7

✔

EDI D1B

✔

EDI E1B

✔

Safety Simplifier

✔

Simplifier wireless distributor

✔

Safety data

Approvals

UL2464

Environmental conditions

Max. operating temperature

-10 ... +55 °C

Electrical data

Pin assignment according DIN 47100

Brown

White

Blue

Black

Grey

Mechanical data

Conductor cross-section K1

0,34 mm² mm²

Electrical drawings

Pin assignment 1

Pin assignment 2

Drawings

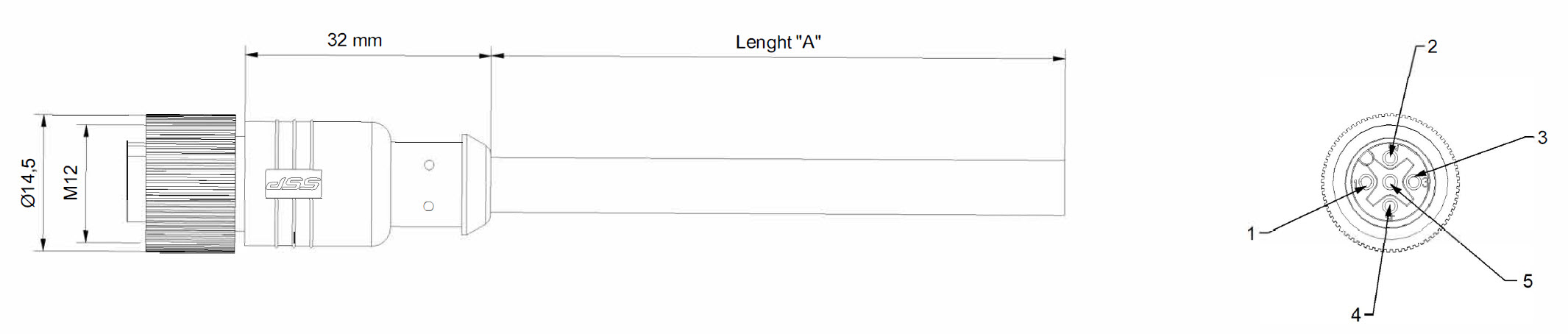

Dimensions
