MICRON M TRX A G
Transmitter/receiver device TRX photocell, for applications with transparent materials, A-coding, M12 5-pin connection cable (90cm)


Betreff: MICRON M TRX A G Transmitter/receiver device TRX photocell, for applications with transparent materials, A-coding, M12 5-pin connection cable (90cm)


General data

Item number
SP-R-12-509-14
Type designation
MICRON M TRX A G
Functional type
Transmitter/receiver device TRX photocell, for applications with transparent materials, A-coding, M12 5-pin connection cable (90cm)
Number of beams
1
Signalling
LEDs for status and diagnostics of the light curtain
Range (m)
0 ... 1,5 - with C3F10 retro-reflector; 0 ... 2 with C3F8 retro-reflector; 0 ... 3 with CD8 retro-reflector

Safety data

Approvals
CE; WEEE; RoHs; China RoHs

Environmental conditions

Max. operating temperature
- 30 ... 55 °C

Electrical data

Max. voltage (VDC)
24 ± 20%
Response times
65
Outputs
0 or 24 VDC (PNP 100 mA 24 VDC) dark on
Type of outputs
0 or 24 VDC (PNP 100 mA 24 VDC) dark on

Mechanical data

Max. Range (m)
3

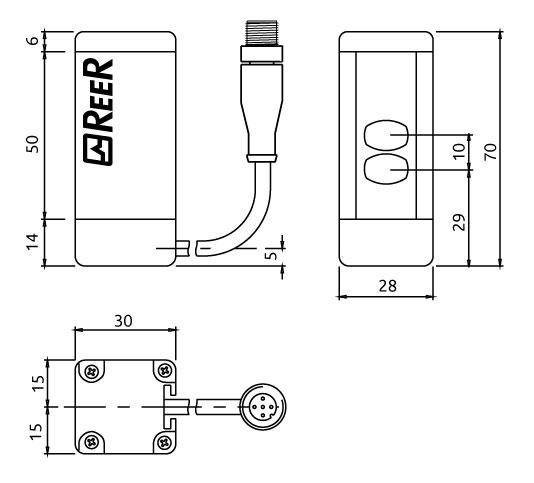

Dimensions HxWxD (mm)
70 x 28 x 30
Mounting
Back slot with set of LE type brackets (included) or to the top and lower end with swivel brackets SFB E (optional)
Connections
Pigtail cable with M12 5-pole connector
Packaging dimensions HxLxW (mm)
170 x 100 x 65
Gross weight (g)
5000
