Datasheet

MICRON M5 B
Multi-beam photocells, B-coding, M12 5-pin connection cable (90cm)

General data

Item number

SP-R-12-509-11

Type designation

MICRON M5 B

Functional type

Multi-beam photocells, B-coding, M12 5-pin connection cable (90cm)

Number of beams

Signalling

LEDs for status and diagnostics of the light curtain

Safety data

Approvals

CE; WEEE; RoHs; China RoHs

Environmental conditions

Max. operating temperature

- 30 ... 55 °C

Electrical data

Max. voltage (VDC)

24 ± 20%

Response times

< 100

Outputs

0 or 24 VDC (PNP 100 mA 24 VDC) dark on

Type of outputs

0 or 24 VDC (PNP 100 mA 24 VDC) dark on

Mechanical data

Beam spacing (mm)

Max. Range (m)

45049

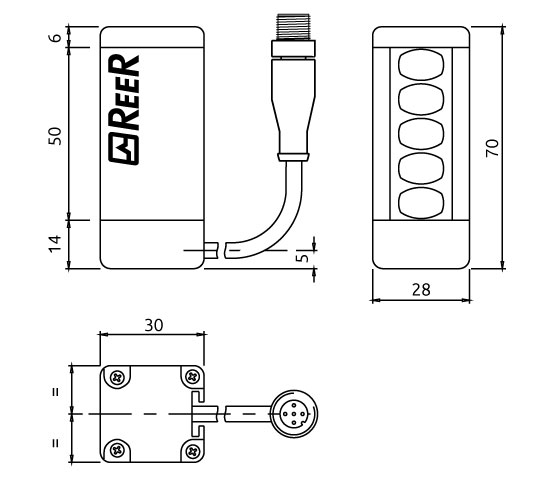

Dimensions HxWxD (mm)

70 x 28 x 30

Mounting

Back slot with set of LE type brackets (included) or to the top and lower end with swivel brackets SFB E (optional)

Connections

Pigtail cable with M12 5-pole connector

Packaging dimensions HxLxW (mm)

170 x 100 x 65

Gross weight (g)

4000
