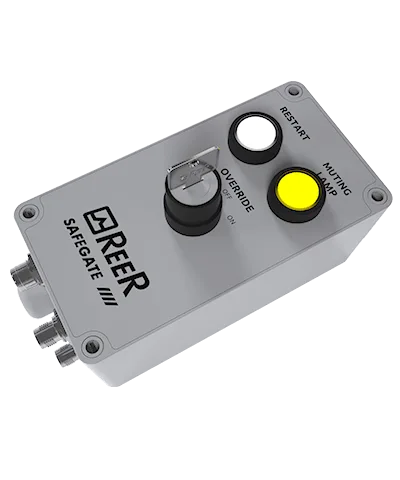

SAFEGATE M SGO BOX PLUS
Junction box for SAFEGATE with restart, override and integrated muting lamp (4NA+1NC)

General data

Item number

SP-R-13-909-56

Type designation

SAFEGATE M SGO BOX PLUS

Functional type

Junction box for SAFEGATE with restart, override and integrated muting lamp (4NA+1NC)

Built-in muting lamp

Yes

Signalling

LEDs for outputs and Muting/Override status

Connectable safety sensors

All Safegate models, excluding S models

Override selection

Yes

Restart button

Yes

Integrated optoelectronic sensors

4 single-beam MTRX with parallel beams. High range

Safety data

Approvals

CE; UL Listed; WEEE; China RoHs; RoHs

Electrical data

Safety relay outputs

2 NO + 1 NC (6A at 250 VAC)

Mechanical data

Dimensions HxWxD (mm)

210 x 110 x 95

Mounting

Set of plastic brackets inserted in the holes placed on the box rear side corners (included)

Connections

M12 5-pole connector (emitter), M12 12-pole connector (receiver or active TRX element), M12 5-pole connector (Muting lamp)

Packaging dimensions HxLxW (mm)

320 x 235 x 160

Gross weight (g)

1761.8

Equipment

M12-C12101-G

M12-C12201-G

M12-C51-G

M12-C52-G

M12-C81-G

M12-C82-G

M12-M12-C-C8053-G PUR

M12-M12-C-C8103-G PUR

M12-M12-C-C813-G PUR

M12-M12-C-C823-G PUR

M12-M12-C-C853-G PUR

M12-M12-C1213-G

M12-M12-C5023-G

M12-M12-C513-G

M12-M12-C523-G

M12-M12-C8103-G

M12-M12-C813-G

M12-M12-C823-G

M12-M12-C853-G
