SAFEGATE MZ T4P TRX G
Muting angle set with 4 MTRX (transceiver) sensors, T-logic (input-output), parallel beams, for applications with transparent materials

General data

Item number

SP-R-13-908-20

Type designation

SAFEGATE MZ T4P TRX G

Functional type

Muting angle set with 4 MTRX (transceiver) sensors, T-logic (input-output), parallel beams, for applications with transparent materials

Muting logic

T (two way) logic with 4 sensors - parallel beams

Muting sensor field

Adjustable height and horizontal and vertical tilting

Characteristic output of the muting sensors

PNP 100 mA at 24 VDC

Muting sensors

Brackets for 4 single-beam retro-reflectors Muting sensors MTRX and 4 retro-reflectors

Integrated optoelectronic sensors

4 single-beam MTRX with parallel beams

Detection

Access control

Safety data

Approvals

CE; UKCA

Environmental conditions

Max. operating temperature

- 30 ... 55 °C

Protective covers

None

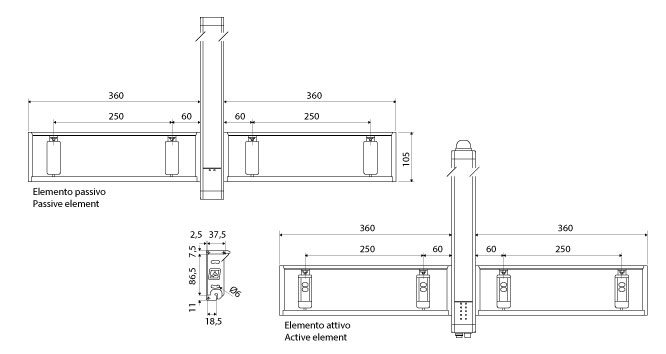

Mechanical data

Max. Range (m)

Mounting

Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)

Packaging dimensions HxLxW (mm)

145 x 910 x 200

Equipment

M12-C12101-G

M12-C12201-G

M12-C51-G

M12-C52-G

M12-C81-G

M12-C82-G

M12-M12-C-C8053-G PUR

M12-M12-C-C8103-G PUR

M12-M12-C-C813-G PUR

M12-M12-C-C823-G PUR

M12-M12-C-C853-G PUR

M12-M12-C1213-G

M12-M12-C5023-G

M12-M12-C513-G

M12-M12-C523-G

M12-M12-C8103-G

M12-M12-C813-G

M12-M12-C823-G

M12-M12-C853-G
