SAFEGATE MZ L2P V
Muting angle set with 2 M5 sensors, L-logic (output only), crossed or parallel beams, for high-speed conveyor applications

General data

Item number

SP-R-13-908-11

Type designation

SAFEGATE MZ L2P V

Functional type

Muting angle set with 2 M5 sensors, L-logic (output only), crossed or parallel beams, for high-speed conveyor applications

Muting logic

L (One way) Logic with 2 sensors - Parallel beams

Muting sensor field

Adjustable height and horizontal and vertical tilting

Characteristic output of the muting sensors

PNP 100 mA at 24 VDC

Muting sensors

Brackets for 2 multibeams Muting sensors M5. Models with longer Muting brackets for high speed conveyors

Integrated optoelectronic sensors

2 multibeams M5 with parallel beams

Detection

Access control

Safety data

Approvals

CE; UKCA

Environmental conditions

Max. operating temperature

- 30 ... 55 °C

Protective covers

None

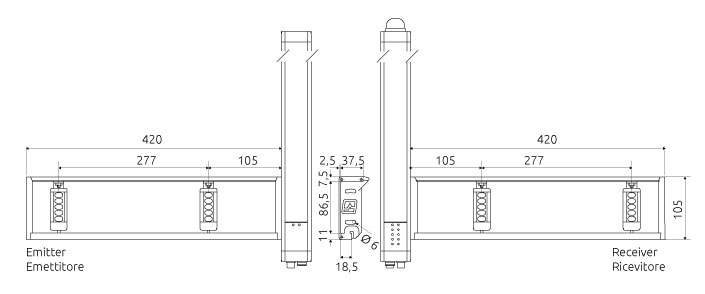

Mechanical data

Max. Range (m)

45049

Mounting

Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)

Packaging dimensions HxLxW (mm)

145 x 510 x 200

Gross weight (g)

2501.6

Equipment

M12-C12101-G

M12-C12201-G

M12-C51-G

M12-C52-G

M12-C81-G

M12-C82-G

M12-M12-C-C8053-G PUR

M12-M12-C-C8103-G PUR

M12-M12-C-C813-G PUR

M12-M12-C-C823-G PUR

M12-M12-C-C853-G PUR

M12-M12-C1213-G

M12-M12-C5023-G

M12-M12-C513-G

M12-M12-C523-G

M12-M12-C8103-G

M12-M12-C813-G

M12-M12-C823-G

M12-M12-C853-G
