SAFEGATE MA T4P TRX
Set of muting arms, T-logic (input-output), 4 parallel beams

General data

Item number

SP-R-13-908-05

Type designation

SAFEGATE MA T4P TRX

Functional type

Set of muting arms, T-logic (input-output), 4 parallel beams

Muting logic

T (two way) logic with 4 parallel beams

Muting sensor field

Adjustable height and tilting

Characteristic output of the muting sensors

PNP 100 mA at 24 VDC

Muting sensors

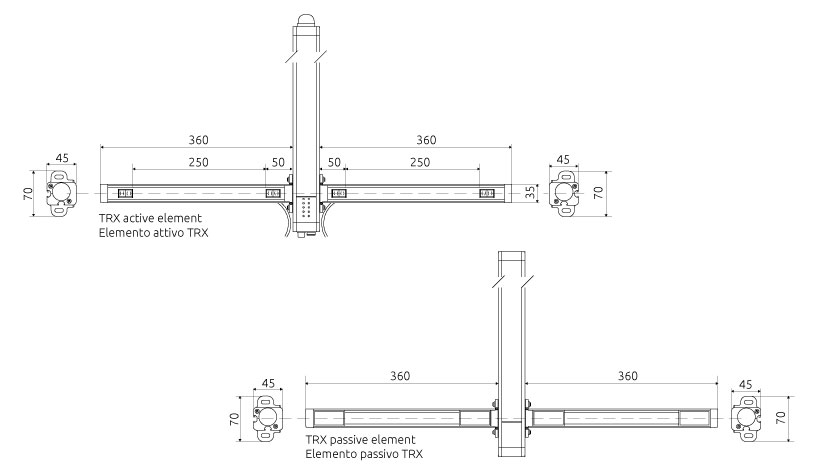

TRX muting sensor arms with active and passive retro-reflective element

Integrated optoelectronic sensors

4 with parallel beams

Detection

Access control

Safety data

Approvals

CE; UKCA

Environmental conditions

Max. operating temperature

- 30 ... 55 °C

Protective covers

None

Mechanical data

Max. Range (m)

Mounting

Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)

Packaging dimensions HxLxW (mm)

145 x 870 x 200

Gross weight (g)

3732.26

Equipment

M12-C12101-G

M12-C12201-G

M12-C51-G

M12-C52-G

M12-C81-G

M12-C82-G

M12-M12-C-C8053-G PUR

M12-M12-C-C8103-G PUR

M12-M12-C-C813-G PUR

M12-M12-C-C823-G PUR

M12-M12-C-C853-G PUR

M12-M12-C1213-G

M12-M12-C5023-G

M12-M12-C513-G

M12-M12-C523-G

M12-M12-C8103-G

M12-M12-C813-G

M12-M12-C823-G

M12-M12-C853-G
