SAFEGATE MA L2X

Downloads

Betreff:

General data

Item number
SP-R-13-908-00
Type designation
SAFEGATE MA L2X
Functional type
Satz Muting-Arme, L-Logik (Nur Ausgang), 2 überkreuzte Strahlen
Muting logic
L (One way) logic with 2 crossed beams
Muting sensor field
Adjustable height and tilting
Characteristic output of the muting sensors
PNP 100 mA at 24 VDC
Muting sensors
Emitter and receiver arms
Integrated optoelectronic sensors
2 with crossed beams
Detection
Access control

Safety data

Approvals
CE; UKCA

Environmental conditions

Max. operating temperature
- 30 ... 55 °C
Protective covers
None

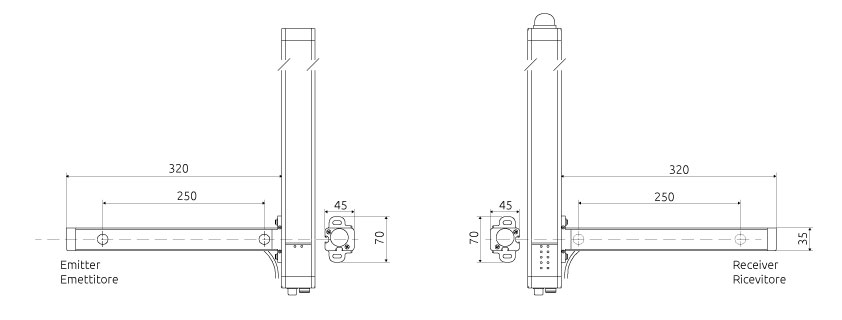

Mechanical data

Max. Range (m)
45048
Mounting
Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
Packaging dimensions HxLxW (mm)
145 x 390 x 200
Gross weight (g)
1769.46

Equipment

M12-C12101-G
M12-C12201-G
M12-C51-G
M12-C52-G
M12-C81-G
M12-C82-G
M12-M12-C-C8053-G PUR
M12-M12-C-C8103-G PUR
M12-M12-C-C813-G PUR
M12-M12-C-C823-G PUR
M12-M12-C-C853-G PUR
M12-M12-C1213-G
M12-M12-C5023-G
M12-M12-C513-G
M12-M12-C523-G
M12-M12-C8103-G
M12-M12-C813-G
M12-M12-C823-G
M12-M12-C853-G
