SAFEGATE SMO 3B TRX
Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM, with muting lamp, transmitter/receiver device TRX

General data

Item number

SP-R-13-906-51

Type designation

SAFEGATE SMO 3B TRX

Functional type

Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM, with muting lamp, transmitter/receiver device TRX

Number of beams

Muting function

Integrated

Muting logic

T (Two way) Logic with 2 or 4 crossed sensors or parallel beams. L (One way) Logic with 2 crossed sensors or parallel beams.

Max. Override timeout

15 min.

Max. Muting timeout

30 sec. or 9 hours selectable - Infinite (only models with 4 sensors sequential muting logic)

Built-in muting lamp

Yes

Muting sensors

Muting arms TRX kit, Muting brackets with MTRX sensors kit

Signalling

LED display for diagnostics, light curtain status and muting sensor status

Detection

Access control

Safety data

MTTFd (ISO 13849-1) years

401

SIL (acc. IEC 62061)

Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4

PFHd (EN ISO 13849)

7.58E-09

Approvals

CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA

Performance Level (EN ISO 13849-1: 2015)

Type 4 - PL e

Safety functions

Integrated

Environmental conditions

Max. operating temperature

- 30 ... 55 °C

Protective covers

None

Electrical data

Max. voltage (VDC)

24 ± 20%

Response times

5.5

Safety output type

2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal

Safety outputs

2 fail-safe PNP (400 mA at 24 VDC)

Mechanical data

Protected height (mm)

810

Resolution (mm)

Multi-beams

Controlled height (mm)

850

Max. Range (m)

Restart

Built-in - user selectable automatic or manual

Total height (mm)

970

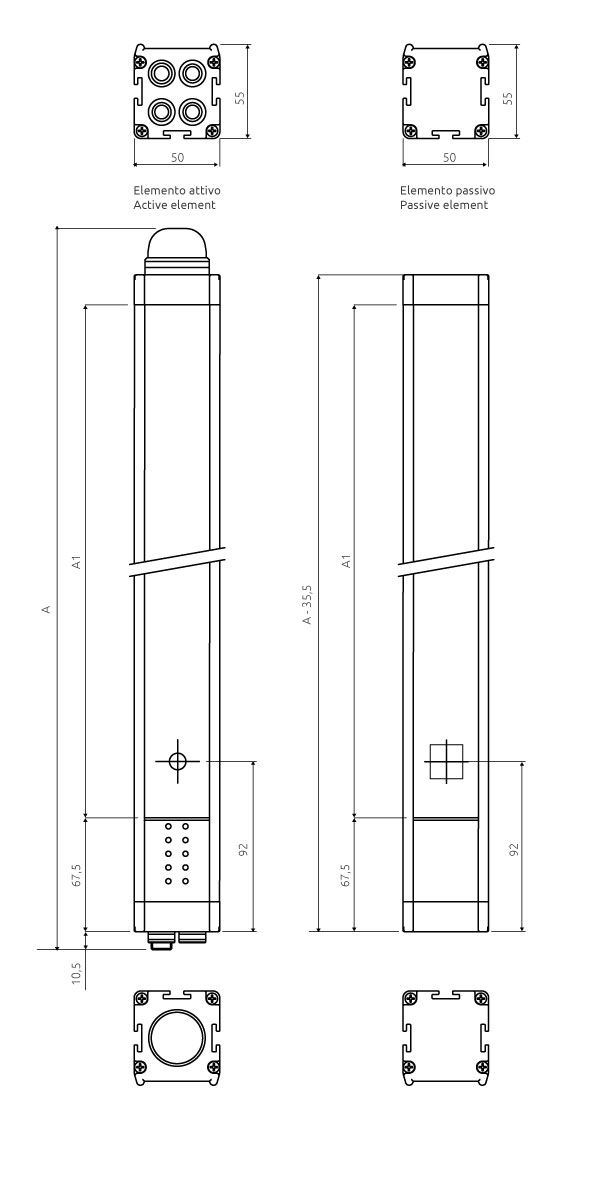

Cross-sectional dimensions (mm)

50 x 55

Mounting

Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)

Max. Length of connection cable (m)

100

Connections

M12 12-pole male connector (active element), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (external Muting lamp)

Packaging dimensions HxLxW (mm)

145 x 1030 x 200

Gross weight (g)

5973.86

Equipment

C3F10

C3F8

CD8

M12-C12101-G

M12-C12201-G

M12-C51-G

M12-C52-G

M12-C81-G

M12-C82-G

M12-M12-C-C8053-G PUR

M12-M12-C-C8103-G PUR

M12-M12-C-C813-G PUR

M12-M12-C-C823-G PUR

M12-M12-C-C853-G PUR

M12-M12-C1213-G

M12-M12-C5023-G

M12-M12-C513-G

M12-M12-C523-G

M12-M12-C8103-G

M12-M12-C813-G

M12-M12-C823-G

M12-M12-C853-G

MICRON M TRX A

MICRON M TRX A G

MICRON M TRX B

MICRON M TRX B G

MICRON M5 A

MICRON M5 B

MICRON M5 H A

MICRON M5 H B

SAFEGATE M SG BOX

SAFEGATE M SG BOX OSSD

SAFEGATE M SG BOX PLUS

SAFEGATE M SG BOX RST P

SAFEGATE M SGO BOX PLUS

SAFEGATE MA L2P TRX

SAFEGATE MA L2P TRX G

SAFEGATE MA L2P TRX V

SAFEGATE MA T2X

SAFEGATE MA T4P TRX

SAFEGATE MA T4P TRX G

SAFEGATE MA T4P TRX V

SAFEGATE MA T4P TRX VG

SAFEGATE MZ L2P V

SAFEGATE MZ L2XP

SAFEGATE MZ L2XP H

SAFEGATE MZ L2XP TRX

SAFEGATE MZ L2XP TRX G

SAFEGATE MZ L2XP TRX H

SAFEGATE MZ T2X

SAFEGATE MZ T2X H

SAFEGATE MZ T2X TRX

SAFEGATE MZ T2X TRX G

SAFEGATE MZ T2X TRX H

SAFEGATE MZ T4P

SAFEGATE MZ T4P H

SAFEGATE MZ T4P TRX

SAFEGATE MZ T4P TRX G

SAFEGATE MZ T4P TRX H

SAFEGATE MZ T4P V
