SAFEGATE SM 2B
Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM

General data

Item number

SP-R-13-906-20

Type designation

SAFEGATE SM 2B

Functional type

Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM

Number of beams

Muting function

Integrated

Muting logic

T (Two way) Logic with 2 or 4 crossed sensors or parallel beams. L (One way) Logic with 2 crossed sensors or parallel beams.

Max. Override timeout

15 min.

Max. Muting timeout

30 sec. or 9 hours selectable - Infinite (only models with 4 sensors sequential muting logic)

Built-in muting lamp

Muting sensors

External with relay or PNP DARK-ON output, muting arm kit, muting bracket kit with M5 sensors

Signalling

LED display for diagnostics, light curtain status and muting sensor status

Detection

Access control

Safety data

MTTFd (ISO 13849-1) years

272.2

SIL (acc. IEC 62061)

Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4

PFHd (EN ISO 13849)

8.97E-09

Approvals

CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA

Performance Level (EN ISO 13849-1: 2015)

Type 4 - PL e

Safety functions

Integrated

Environmental conditions

Max. operating temperature

- 30 ... 55 °C

Protective covers

None

Electrical data

Max. voltage (VDC)

24 ± 20%

Response times

5.5

Safety output type

2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal

Safety outputs

2 fail-safe PNP (400 mA at 24 VDC)

Mechanical data

Protected height (mm)

510

Resolution (mm)

Multi beams

Controlled height (mm)

589

Max. Range (m)

Restart

Built-in - user selectable automatic or manual

Total height (mm)

684

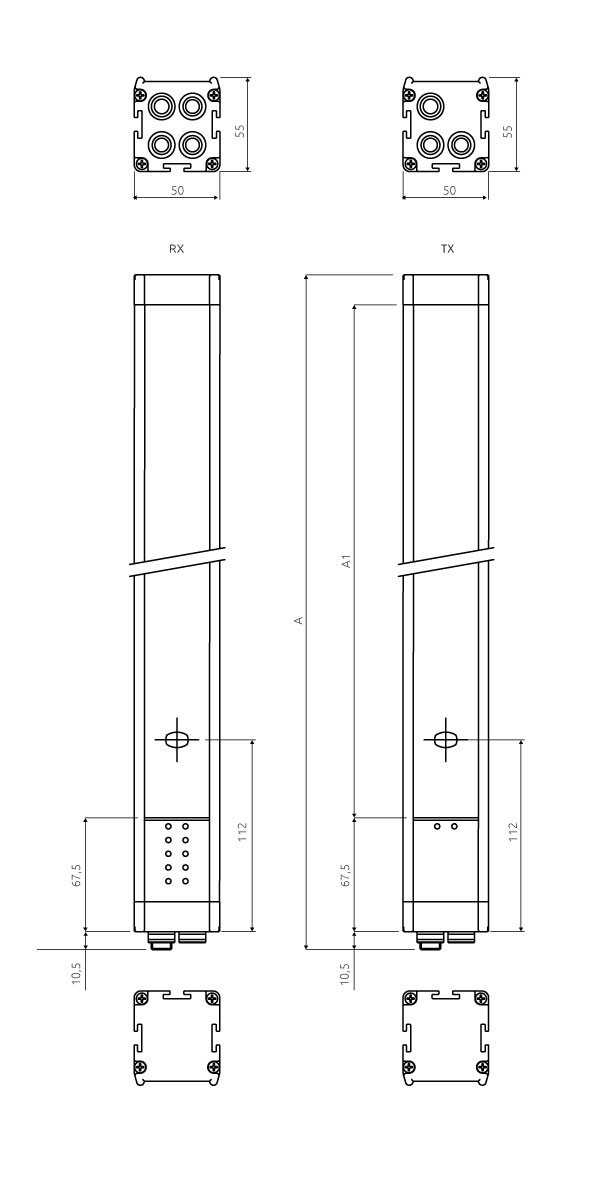

Cross-sectional dimensions (mm)

50 x 55

Mounting

Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)

Max. Length of connection cable (m)

100

Connections

M12 5-pole male connector (emitter), M12 12-pole male connector (receiver), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (external Muting lamp)

Packaging dimensions HxLxW (mm)

145 x 770 x 200

Gross weight (g)

4235.26

Equipment

CD10

CD15

CD20

CD25

CD5

CD50

M12-C12101-G

M12-C12201-G

M12-C51-G

M12-C52-G

M12-C81-G

M12-C82-G

M12-M12-C-C8053-G PUR

M12-M12-C-C8103-G PUR

M12-M12-C-C813-G PUR

M12-M12-C-C823-G PUR

M12-M12-C-C853-G PUR

M12-M12-C1213-G

M12-M12-C5023-G

M12-M12-C513-G

M12-M12-C523-G

M12-M12-C8103-G

M12-M12-C813-G

M12-M12-C823-G

M12-M12-C853-G

MICRON M TRX A

MICRON M TRX A G

MICRON M TRX B

MICRON M TRX B G

MICRON M5 A

MICRON M5 B

MICRON M5 H A

MICRON M5 H B

SAFEGATE MA L2P TRX

SAFEGATE MA L2P TRX G

SAFEGATE MA L2P TRX V

SAFEGATE MA T2X

SAFEGATE MA T4P TRX

SAFEGATE MA T4P TRX G

SAFEGATE MA T4P TRX V

SAFEGATE MA T4P TRX VG

SAFEGATE MZ L2P V

SAFEGATE MZ L2XP

SAFEGATE MZ L2XP H

SAFEGATE MZ L2XP TRX

SAFEGATE MZ L2XP TRX G

SAFEGATE MZ L2XP TRX H

SAFEGATE MZ T2X

SAFEGATE MZ T2X H

SAFEGATE MZ T2X TRX

SAFEGATE MZ T2X TRX G

SAFEGATE MZ T2X TRX H

SAFEGATE MZ T4P

SAFEGATE MZ T4P H

SAFEGATE MZ T4P TRX

SAFEGATE MZ T4P TRX G

SAFEGATE MZ T4P TRX H

SAFEGATE MZ T4P V
