SAFEGATE S 2B LR ILP
Safety light curtain for access control with automatic/manual restart and EDM (no integrated muting function), long range, with integrated laser pointer

Betreff: SAFEGATE S 2B LR ILP Safety light curtain for access control with automatic/manual restart and EDM (no integrated muting function), long range, with integrated laser pointer

General data

Item number
SP-R-13-900-33
Type designation
SAFEGATE S 2B LR ILP
Functional type
Safety light curtain for access control with automatic/manual restart and EDM (no integrated muting function), long range, with integrated laser pointer
Number of beams
2
Built-in muting lamp
No
Signalling
LEDs for status and diagnostics of the light curtain
Detection
Access control

Safety data

MTTFd (ISO 13849-1) years
272.2
SIL (acc. IEC 62061)
Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4
PFHd (EN ISO 13849)
8.97E-09
Approvals
CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA
Performance Level (EN ISO 13849-1: 2015)
Type 4 - PL e
Safety functions
Integrated

Environmental conditions

Max. operating temperature
- 30 ... 55 °C
Protective covers
None

Electrical data

Max. voltage (VDC)
24 ± 20%
Response times
5.5
Safety output type
2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal
Safety outputs
2 fail-safe PNP (400 mA at 24 VDC)

Mechanical data

Protected height (mm)
510
Resolution (mm)
Multi-beam
Controlled height (mm)
556
Max. Range (m)
80
Restart
Built-in - user selectable automatic or manual
Total height (mm)
651

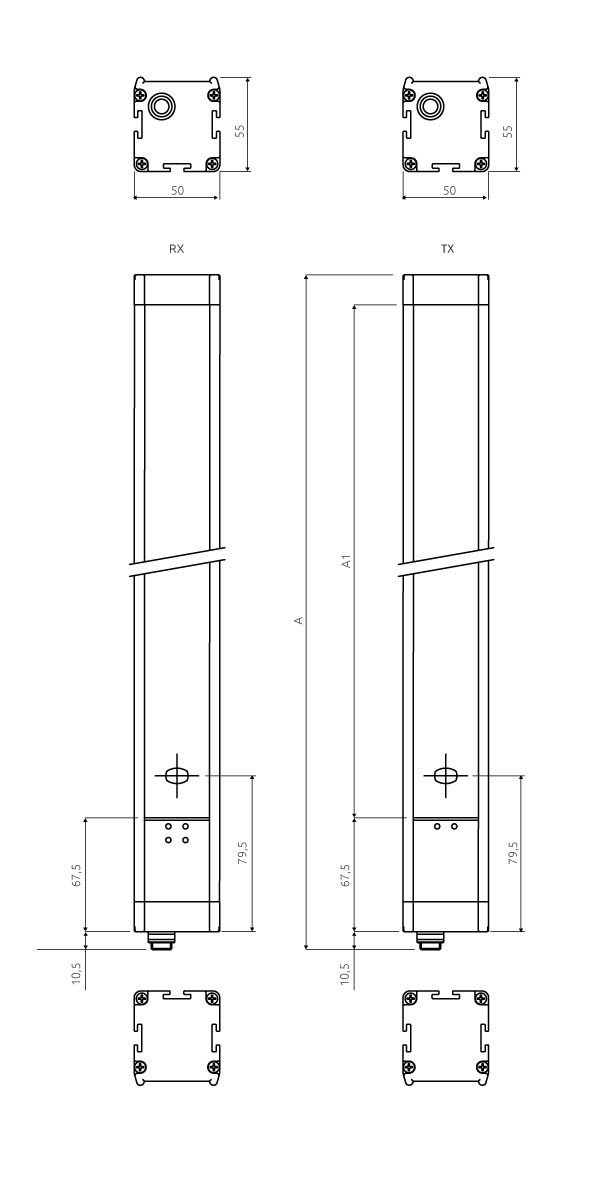

Cross-sectional dimensions (mm)
50 x 55
Mounting
Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
Max. Length of connection cable (m)
100
Connections
M12 5-pole male connector (emitter), M12 8-pole male connector (receiver)
Packaging dimensions HxLxW (mm)
145 x 1150 x 200
Gross weight (g)
4250

Equipment

C8D10
C8D15
C8D25
C8D40
C8D5
CD10
CD15
CD20
CD25
CD5
CD50
M12-C12101-G
M12-C12201-G
M12-C51-G
M12-C52-G
M12-C81-G
M12-C82-G
M12-M12-C-C8053-G PUR
M12-M12-C-C8103-G PUR
M12-M12-C-C813-G PUR
M12-M12-C-C823-G PUR
M12-M12-C-C853-G PUR
M12-M12-C1213-G
M12-M12-C5023-G
M12-M12-C513-G
M12-M12-C523-G
M12-M12-C8103-G
M12-M12-C813-G
M12-M12-C823-G
M12-M12-C853-G
